P80 Electro-hydraulic 4 Spool Monoblock Directional Valve

Rated Flow:80 L/min (21.2 US gpm)

Vendor:BXHS

Product Type:Monoblock Directional Valve

Product Series:P80 Series Monoblock Directional Valve

Productsize:50*40*20

Netweight:22.00 kg

Availability: In Stock

  • Manual
  • Pneumatic
  • Electro-pneumatic
  • Electro-hydraulic
  • Solenoid
  • Hydraulic
  • Hydraulic and Manual
  • Cable
  • Joystick
  • 1 Spool
  • 2 Spool
  • 3 Spool
  • 4 Spool
  • 5 Spool
  • 6 Spool
  • 7 Spool
5 Views are Looking for this Product

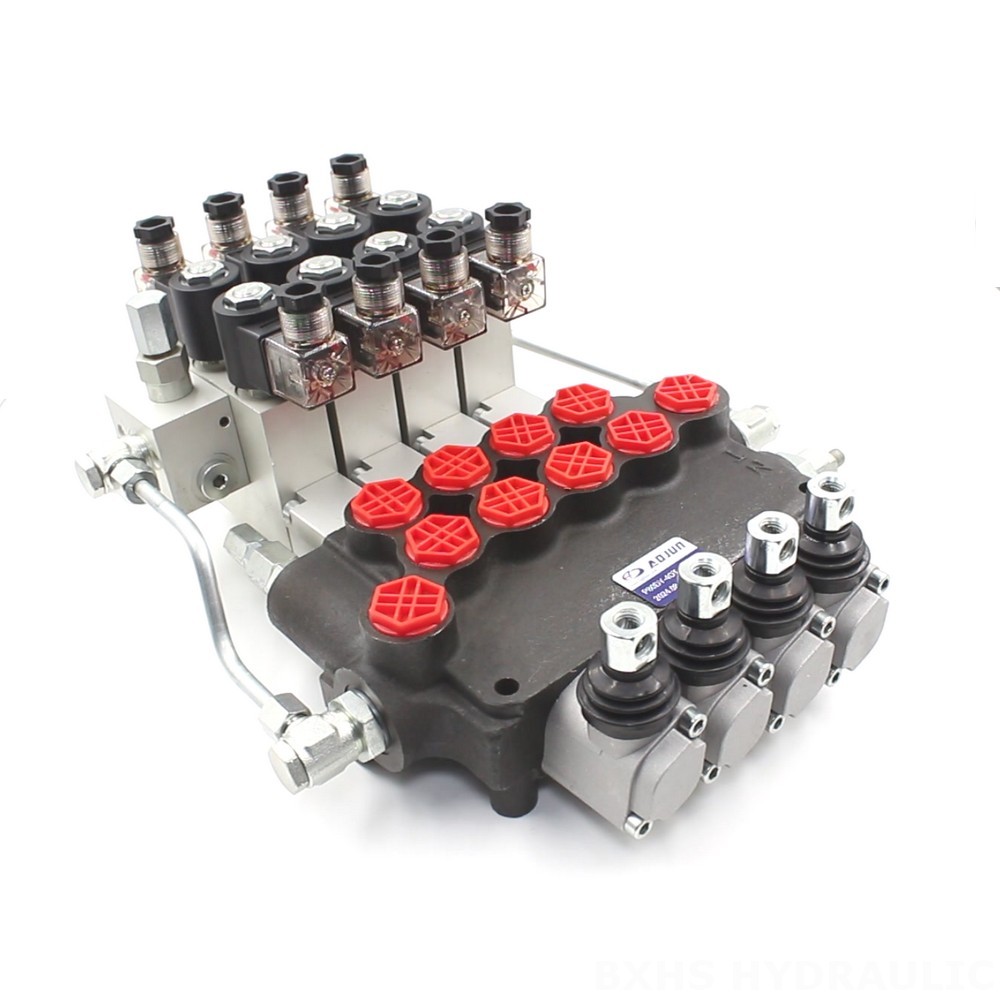

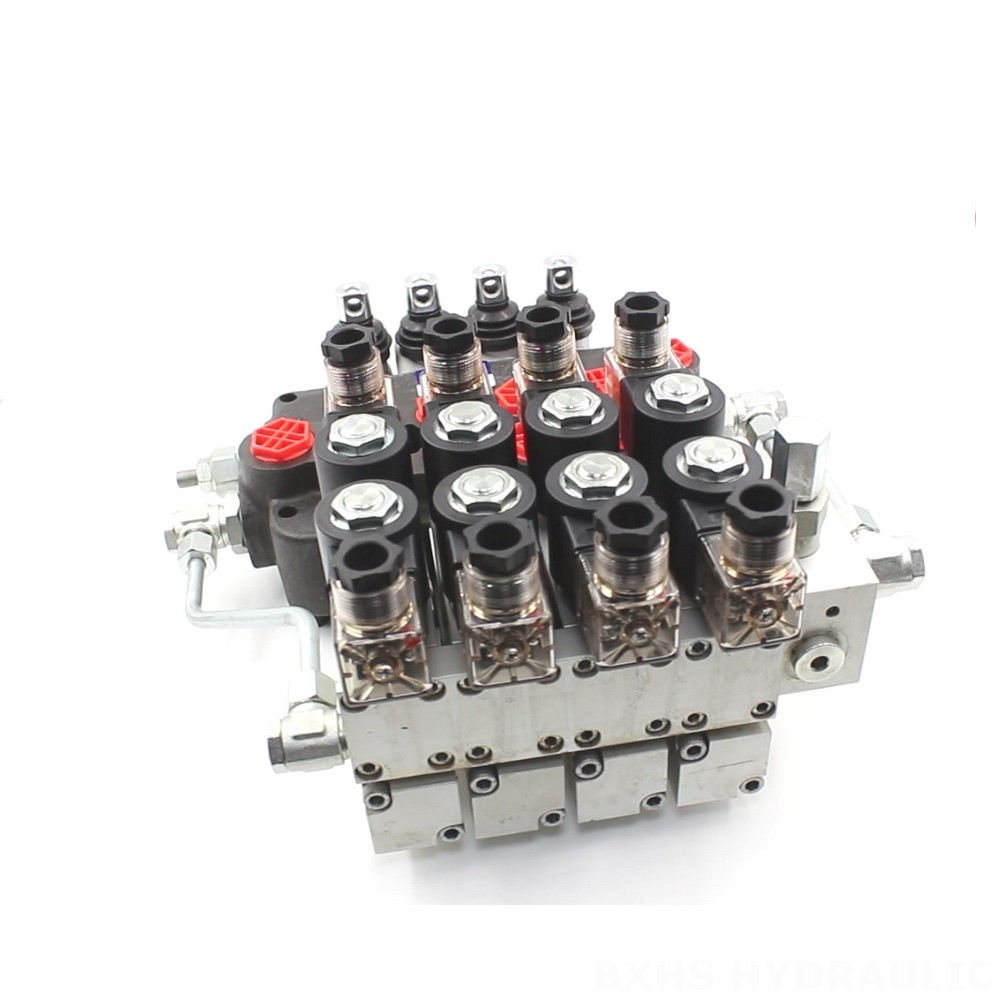

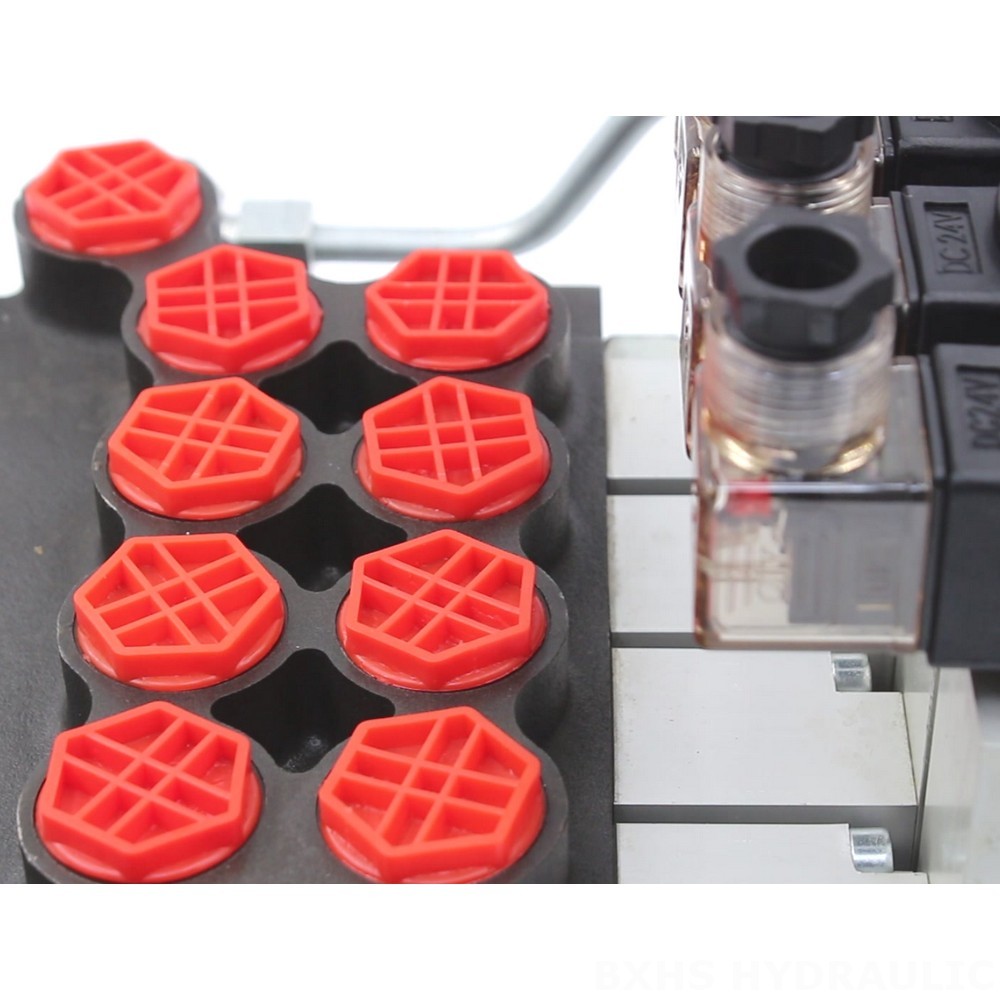

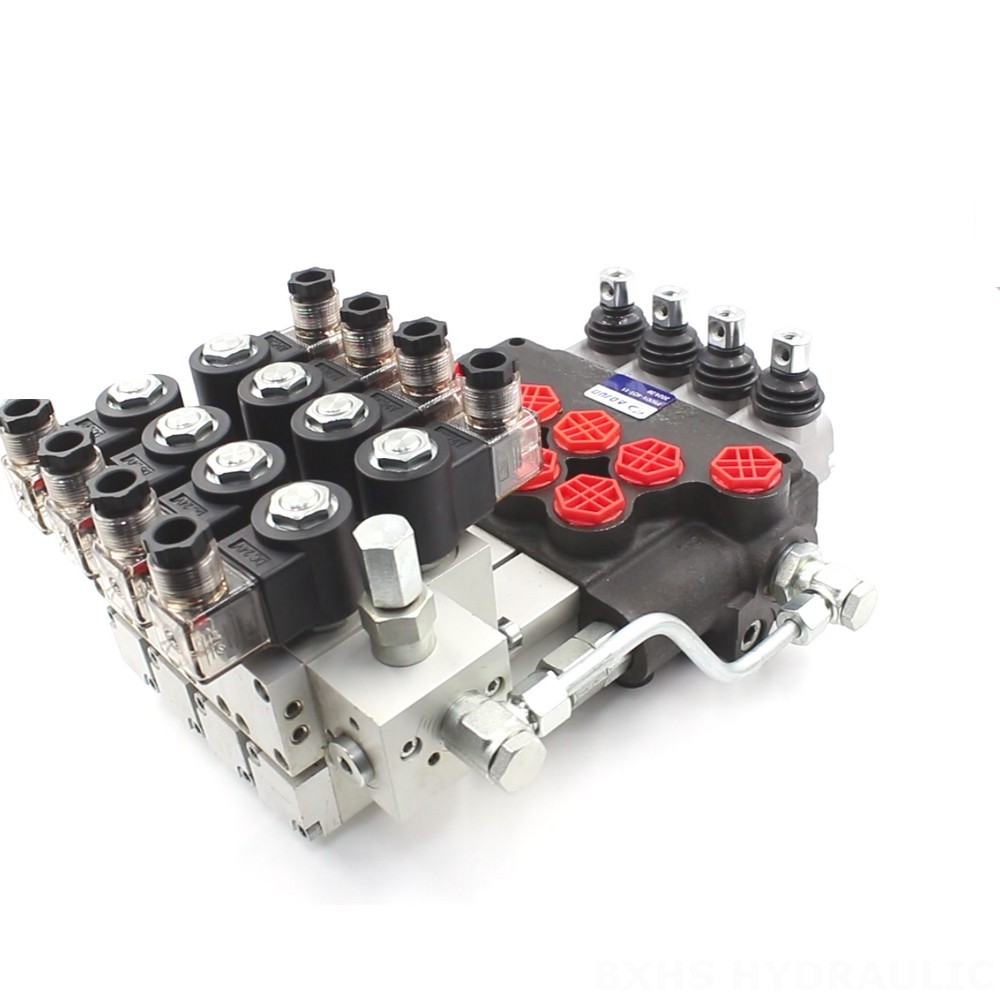

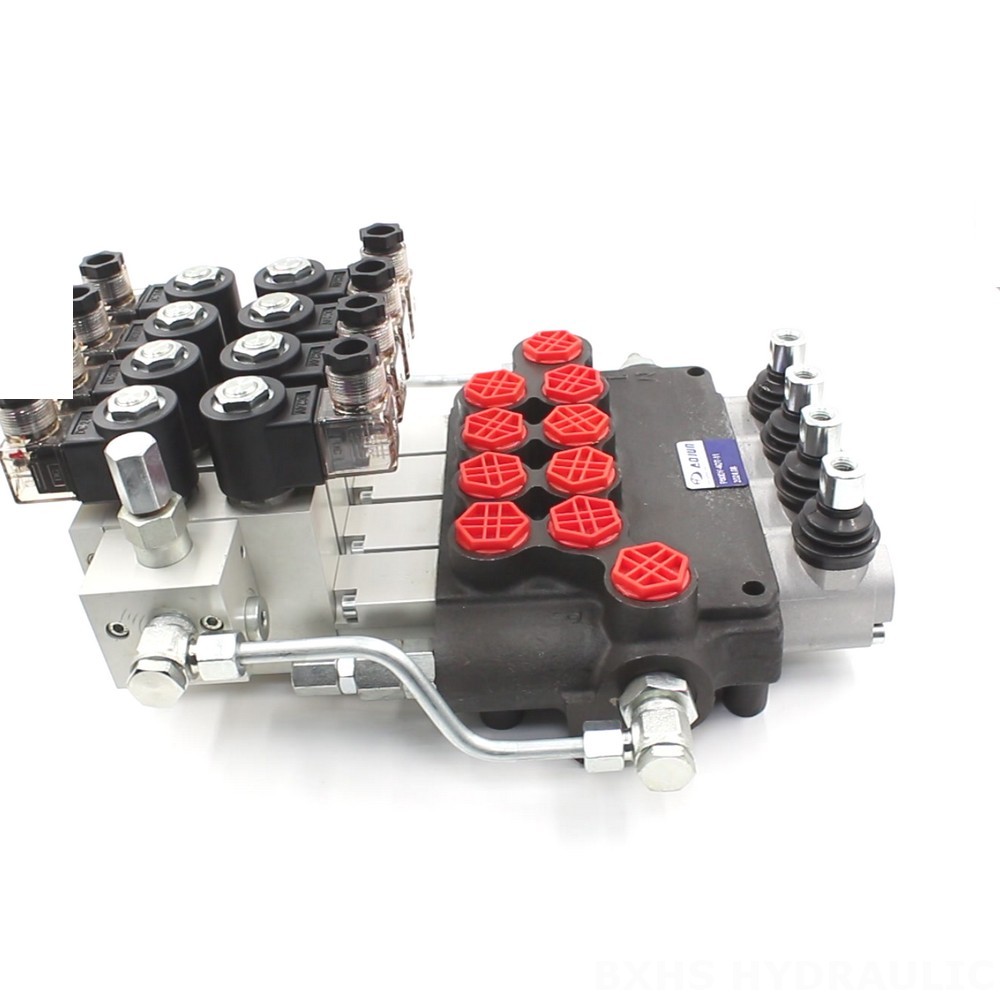

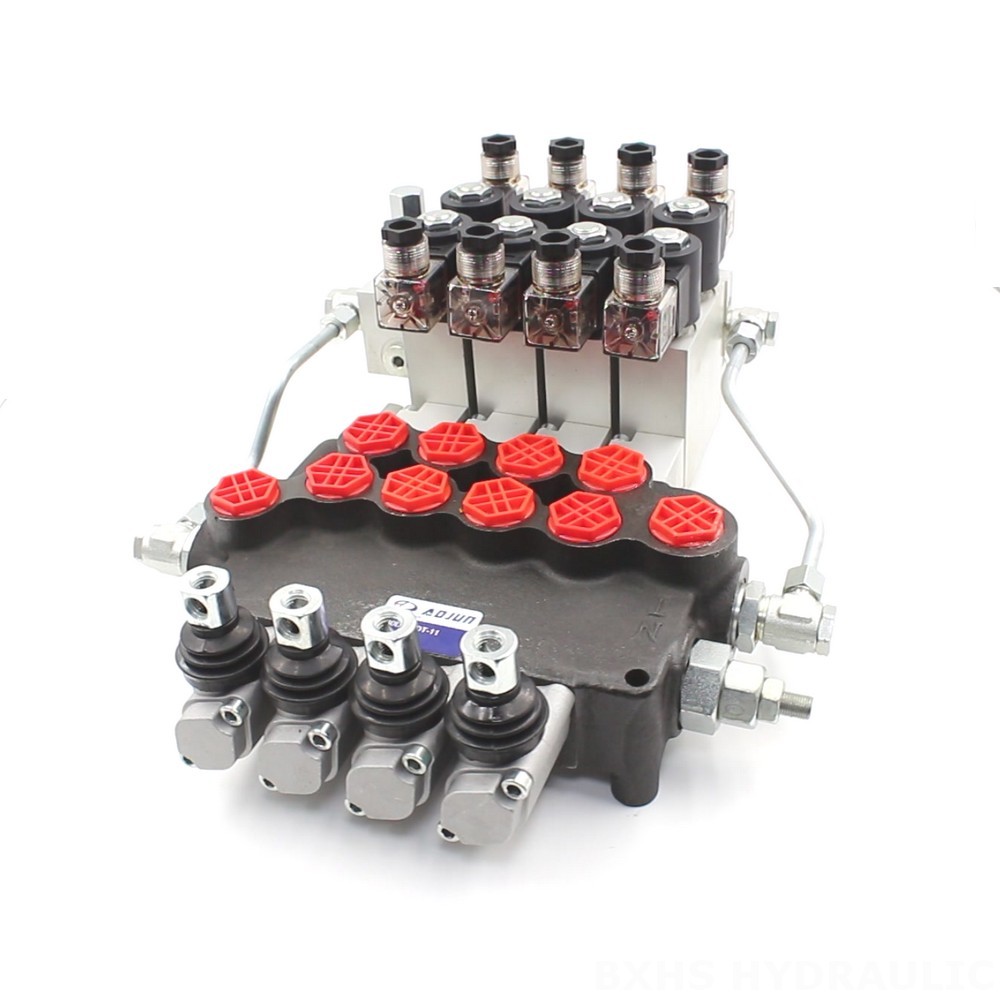

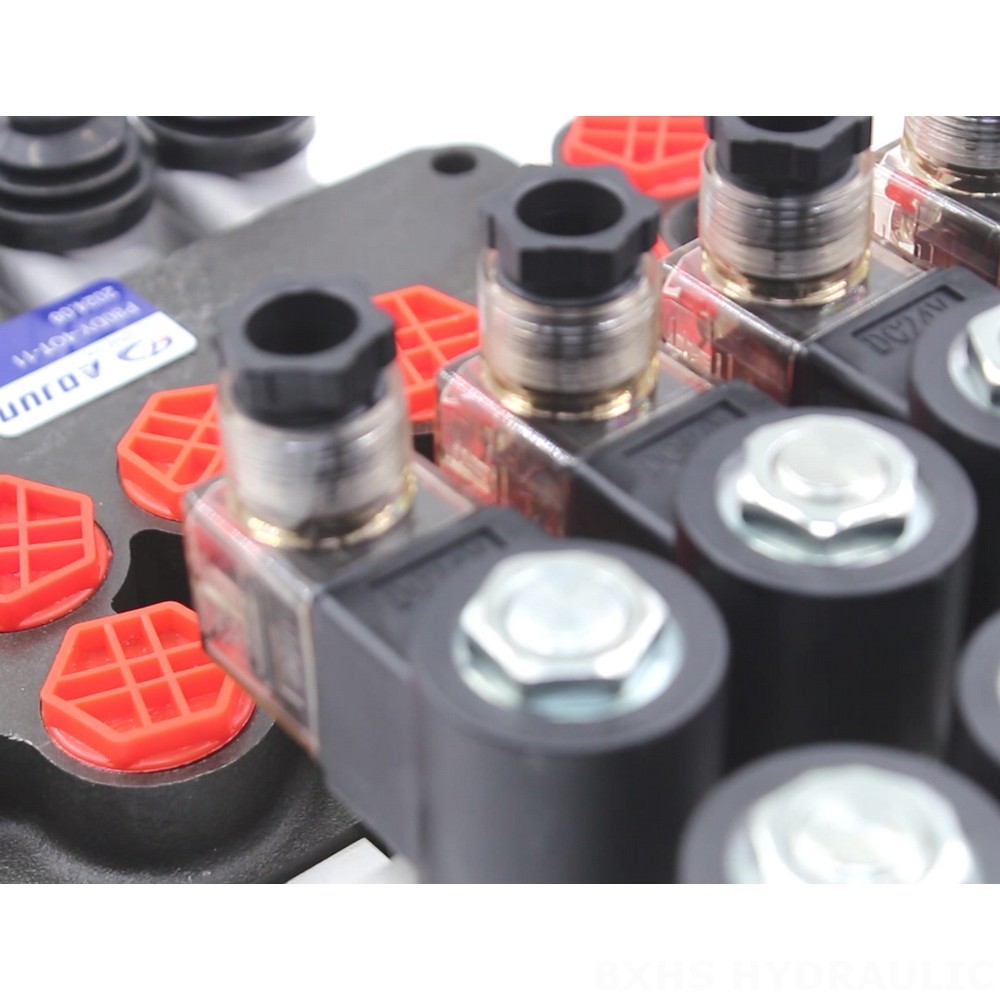

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve detailed image

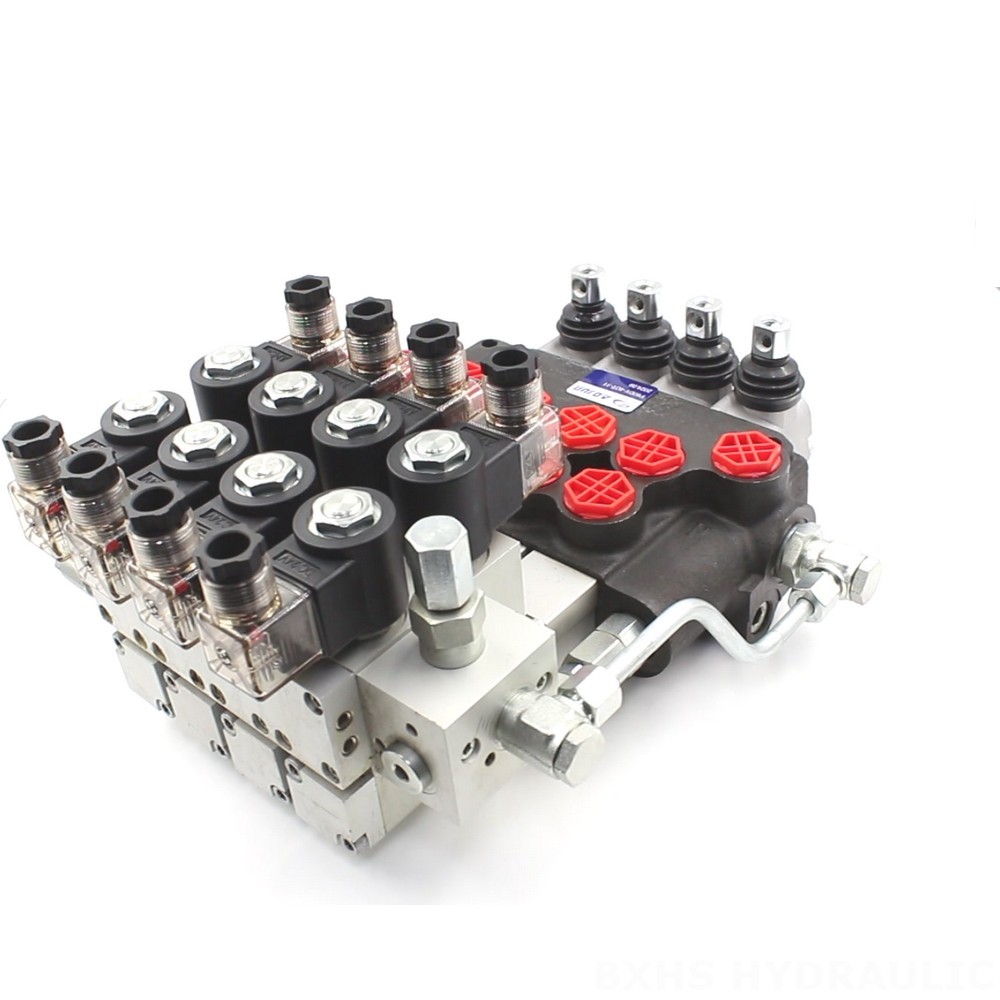

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve detailed image

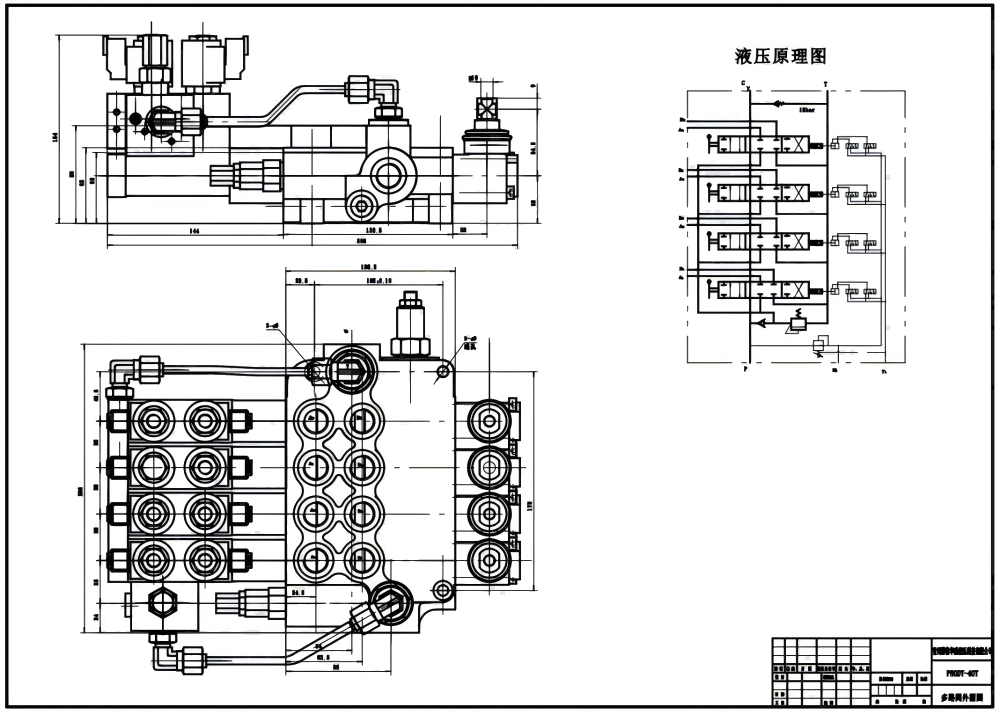

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve drawing image

The P80 Electro-hydraulic 4 Spool Monoblock Directional Valve is a high-performance, robust valve designed for various applications across diverse industries, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 315 bar, it offers reliable and efficient control in demanding environments.

Section 1 Section,2 Section,3 Section,4 Section,5 Section,6 Section,7 Section
Structure Type Monoblock valve
Control Method Electro-hydraulic
Rated Flow 80 L/min (21.2 US gpm)
Max Pressure 315 bar (4600 psi)
Operating Viscosity Range 15 - 75 mm²/s (15 cSt to 75 cSt)
Ambient Temperature Range -40°C to +80°C (-40°F to +176°F)

The P80 Electro-hydraulic 4 Spool Monoblock Directional Valve is a high-performance hydraulic component designed for demanding applications. Its monoblock construction ensures exceptional durability and reliability, while the electro-hydraulic control allows for precise and responsive operation. The valve boasts a rated flow of 80 L/min and a maximum pressure of 315 bar, making it suitable for high-flow applications requiring significant power. The wide operating viscosity range (15-75 mm²/s) and extensive temperature range (-40°C to +80°C) make it adaptable to various operating conditions. Its compact design and ease of integration make it an ideal choice for a wide range of equipment. The P80 is particularly well-suited for use in forklifts, skid steer loaders, compact wheel loaders, tractors with front-end loaders, telehandlers, mini and midi excavators, harvesters, balers, and backhoes, among other applications. Its robust construction, high flow rate, and precise control contribute to improved efficiency, productivity, and safety in these applications. We offer manufacturing, OEM, private labeling, customization, and wholesale services, and are actively seeking distributors, wholesalers, agents, and trading partners globally.

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve application image

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve packing image

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve company image

P80 Electro-hydraulic 4 Spool Monoblock Directional Valve certification image
